What is a Cable Tray and Why is it Important in Electrical Systems?
A cable tray is a support system designed to organize and carry electrical cables or signal wires in a neat, structured pathway. It is typically manufactured in long sections using various materials depending on the application, such as powder-coated steel, hot-dip galvanized steel, or PVC.
The primary function of a cable tray is not only to improve appearance and organization, but also to protect cables from physical damage caused by impact, animal interference, moisture, or even fire spread in the event of an electrical short circuit.
Key Features of Cable Trays
Corrosion Resistance
Especially in industrial environments exposed to moisture or chemicals, cable trays should be treated with special surface coatings such as hot-dip galvanizing to prevent rust and extend service life.
Heat Dissipation
A well-designed cable tray allows proper ventilation and airflow to reduce heat accumulation, helping maintain electrical performance and cable lifespan.
Easy Installation and Maintenance
Cable trays are designed for convenient access, allowing technicians to easily open covers, add new cables, or replace existing wiring without rebuilding the entire system.
Mechanical Strength
Cable trays must be strong enough to support heavy cable loads without bending or deformation.
Types of Cable Trays Commonly Used in Industry
Cable tray manufacturers generally divide products into four main categories based on structure and application.
1. Wireway
A Wireway is a fully enclosed steel cable management system used for electrical wiring in industrial facilities and buildings. Its enclosed structure provides excellent protection against dust, moisture, and physical impact.
Wireways are ideal for main power lines or branch circuits requiring enhanced safety and environmental protection.
2. Perforated Tray
A Perforated Tray is a cable tray with ventilation holes designed to support and organize electrical and communication cables in buildings, factories, and solar systems.
Key Advantages of Perforated Trays
- Ventilation holes help reduce cable heat accumulation
- Lighter weight compared to solid trays
- Easy cable installation and inspection
- Suitable for both indoor and outdoor applications depending on material type
- Ideal for buildings, factories, data centers, solar roofs, and industrial electrical systems
3. Cable Tray & Cable Ladder
Cable Trays and Cable Ladders are open-type cable support systems designed for large electrical cables or installations with high cable volumes.
They are commonly installed on rooftops or factory ceilings for power cable systems requiring maximum airflow and support.
Cable Tray
Perforated steel tray suitable for medium-sized cables and general electrical installations.
Cable Ladder
A ladder-type structure offering the highest mechanical strength among all cable tray systems, ideal for heavy-duty power cables.

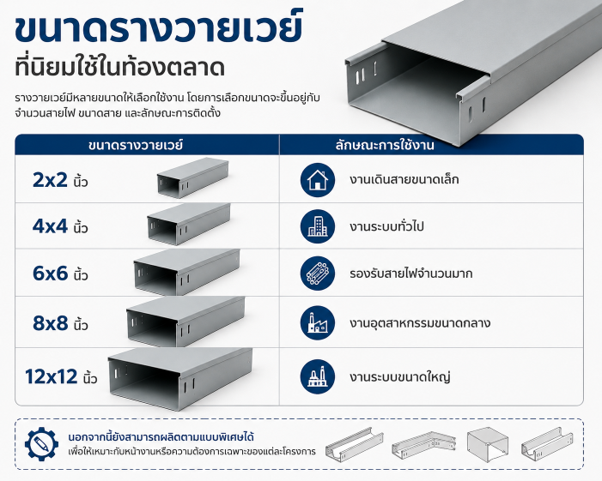

Common Wireway Sizes in the Market
Wireways are available in various sizes depending on:
- Number of cables
- Cable dimensions
- Installation requirements
All products are tested for Load & Deformation standards to ensure safety and durability.
Popular sizes available in the market include.
In addition, custom-made designs can be manufactured to suit specific site conditions and the unique requirements of each project.
Conclusion
Today, cable management systems are available in various types, including Wireways, Wire Ducts, Cable Trays, Cable Ladders, and PVC cable ducts — each designed with different features and applications.
Therefore, selecting the right cable tray system and choosing a trusted cable tray manufacturer are essential factors in ensuring electrical systems remain safe, durable, and highly efficient for long-term operation.
If you are looking for high-quality cable management solutions, Indochina Engineering System Keylai Co., Ltd. is a manufacturer and distributor of Wireways, Cable Trays, Cable Ladders, and Cable Baskets.
Whether your project involves industrial facilities, office buildings, or large-scale construction projects, we are ready to provide solutions tailored to your needs — ensuring your electrical systems remain safe, efficient, and reliable for years to come.
